Engineering rooftop illuminated channel letters for a glass curtain wall technology park with wind-resistant structure, uniform LED lighting and long-term outdoor durability

Project Name: Shum Yip Technology Park Signage
Time: 2025

Engineering Summary

Large-scale rooftop illuminated channel letters were installed on the glass curtain wall building of Shenzhen Science & Industry Park to replace the original outdated rooftop signage.

The project focused on three engineering objectives:

• Long-distance visibility
• Structural reliability under typhoon conditions
• Low-maintenance outdoor operation

The completed signage provides clear building identification from surrounding roads, neighboring office towers and aerial viewpoints while maintaining harmony with the building façade.

Project Snapshot

Engineering Challenge

The rooftop signage needed to perform under several practical constraints.

• Long viewing distances from surrounding roads
• Multi-angle visibility from adjacent office towers
• Frequent aerial photography
• High humidity
• Strong UV exposure
• Heavy seasonal rainfall
• Typhoon-level wind loads

These conditions required the signage to balance architectural appearance, structural safety and long-term durability.

Engineering Solution

Instead of increasing letter size alone, the engineering team optimized the entire signage system from visibility, structure and maintenance perspectives.

Optimized Visibility

Letter proportions, stroke widths and spacing were adjusted through multiple rounds of layout evaluation.

The final arrangement improves long-distance readability while maintaining the architectural rhythm of the glass curtain wall façade.

Wind-resistant Structure

Each letter is supported by an independent Q235B welded steel frame connected directly to the rooftop structural members.

The modular design distributes wind loads efficiently while allowing individual letters to be removed for future servicing without dismantling the complete system.

Low-maintenance Design

Maintenance requirements were considered during the initial engineering stage rather than after installation.

The signage integrates:

• concealed cable routing
• inspection openings
• internal drainage channels
• dual waterproof sealing

These features simplify routine maintenance and reduce future operating costs.

Materials & Lighting System

The rooftop signage uses materials selected specifically for long-term outdoor exposure.

Structural Materials

• Q235B welded steel framework
• Precision-formed aluminum channel letters
• Fluorocarbon-coated exterior finish

Compared with conventional steel letter bodies, aluminum reduces dead load while maintaining dimensional accuracy during fabrication and installation.

Lighting Configuration

Each letter uses customized LED module spacing rather than uniform module intervals.

The lighting system combines:

• Double-sided illumination
• Rear halo lighting

This customized arrangement minimizes hotspots and shadows while producing consistent brightness across the entire letter surface.

The system operates at 5000 K neutral white and is controlled by an astronomical timer that automatically adjusts switching schedules throughout the year.

Fabrication & Installation

All letters were digitally modeled before production to verify structural connections, reinforcement locations and fixing points.

Factory prefabrication improved assembly accuracy before shipment to site.

To minimize disruption to park operations, rooftop lifting and installation were completed during nighttime construction.

After installation, engineers performed:

• waterproof testing
• electrical commissioning
• lighting calibration

The completed installation achieved an overall alignment tolerance of ±5 mm.

Engineering Results

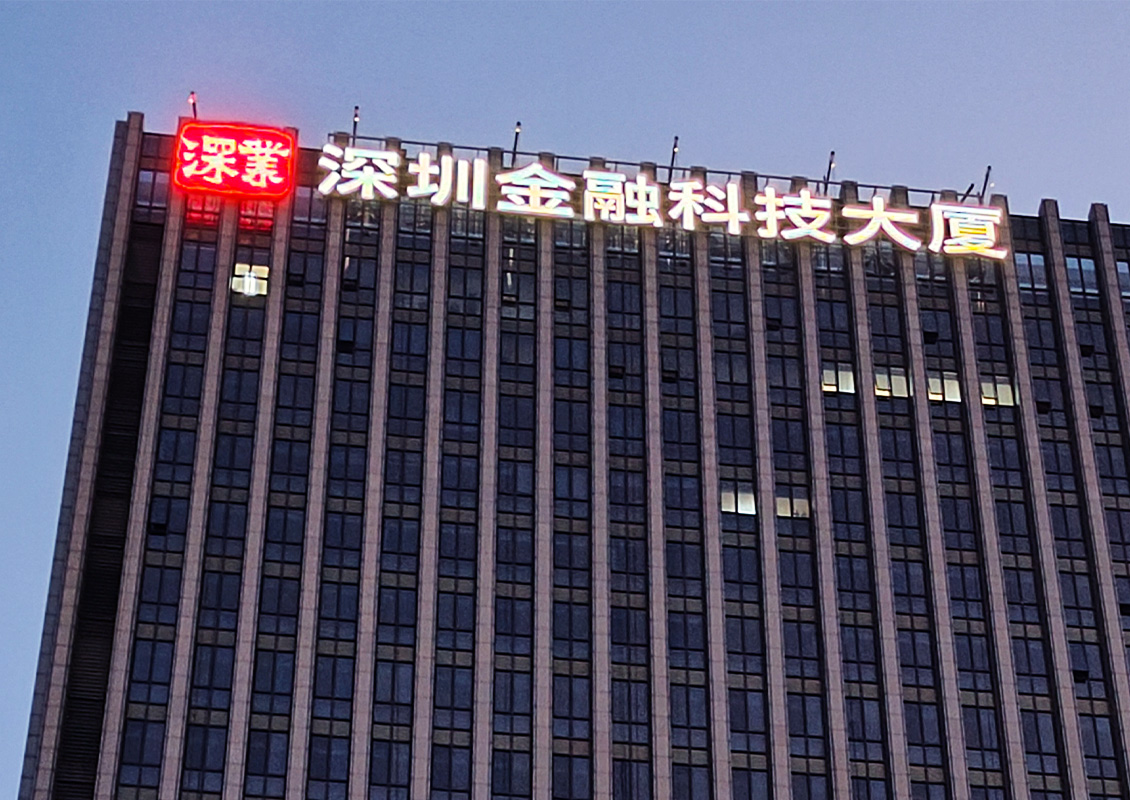

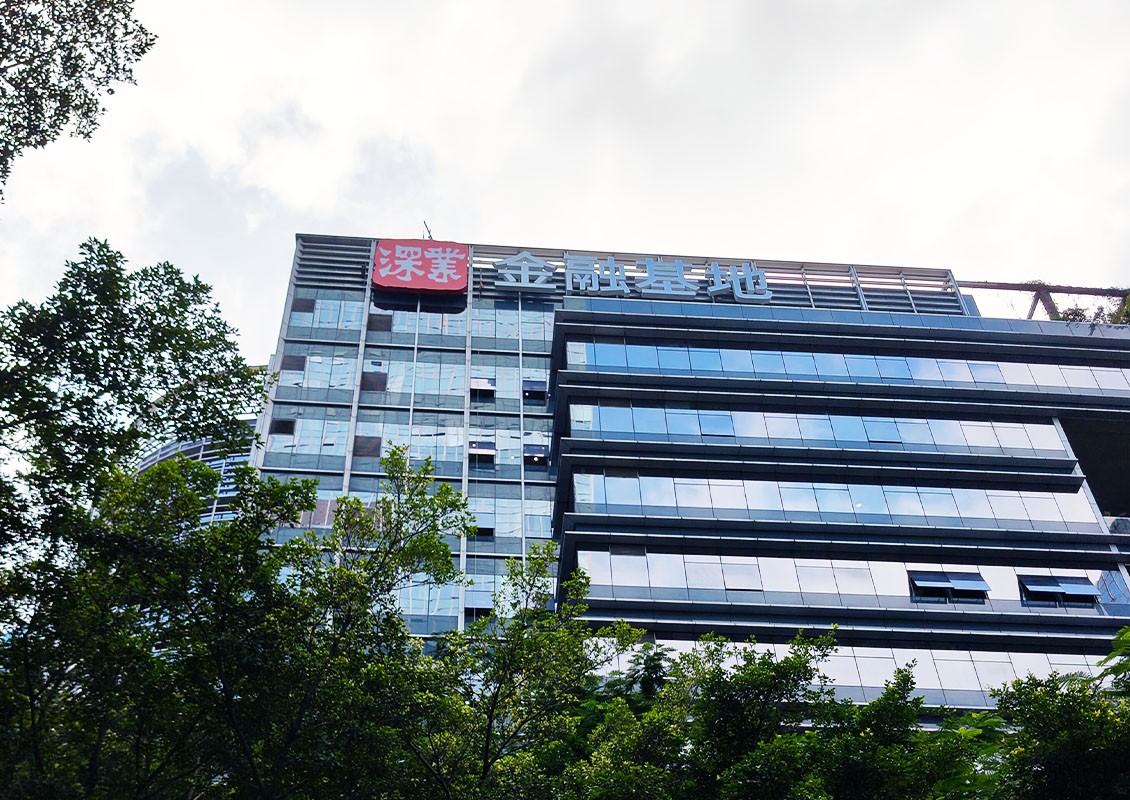

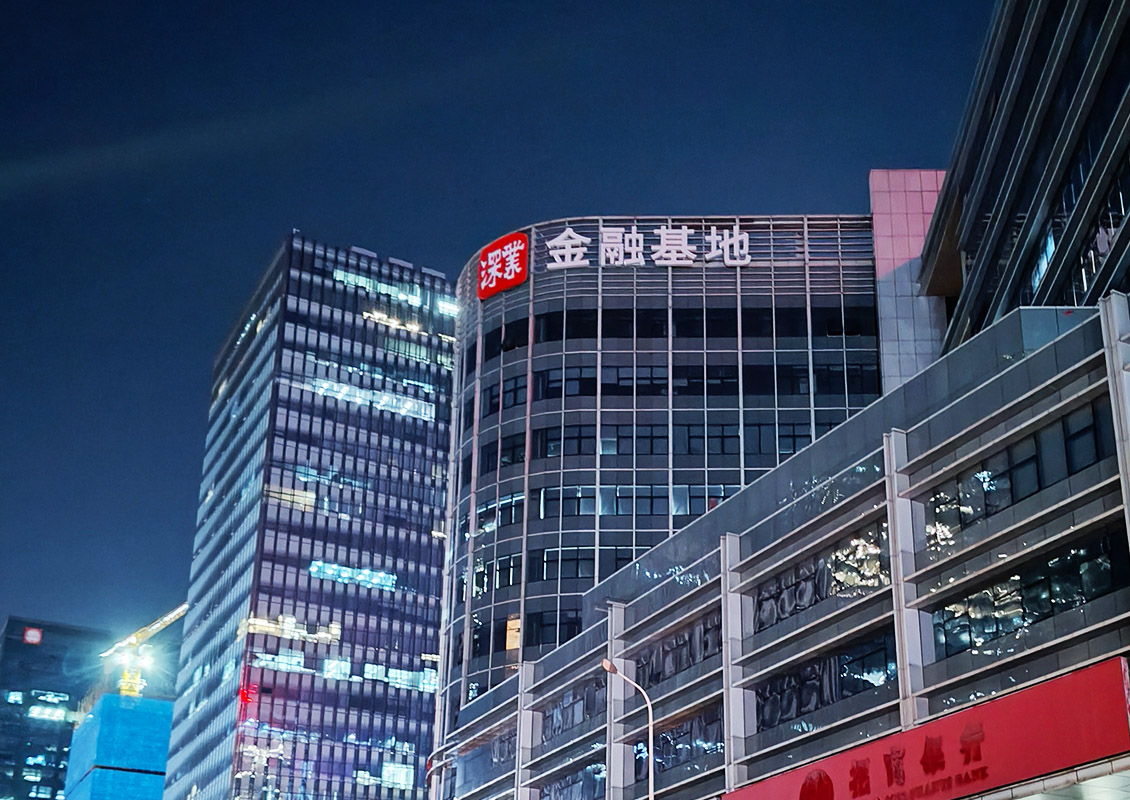

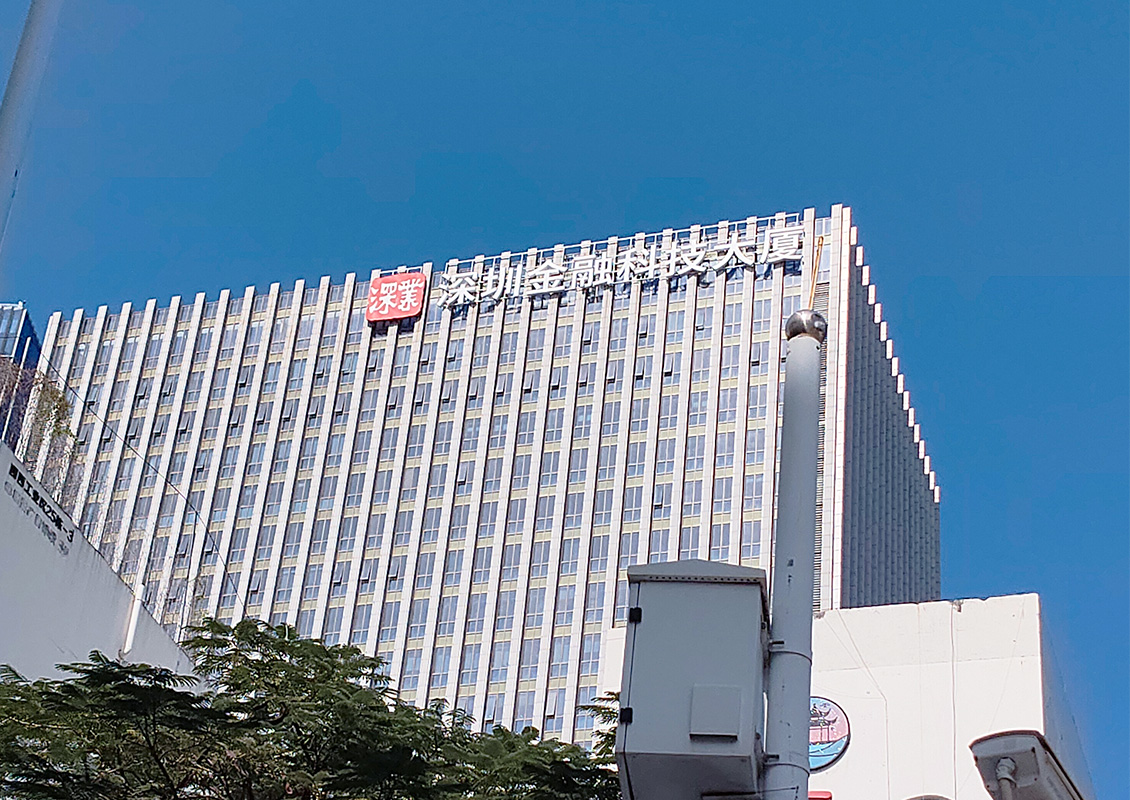

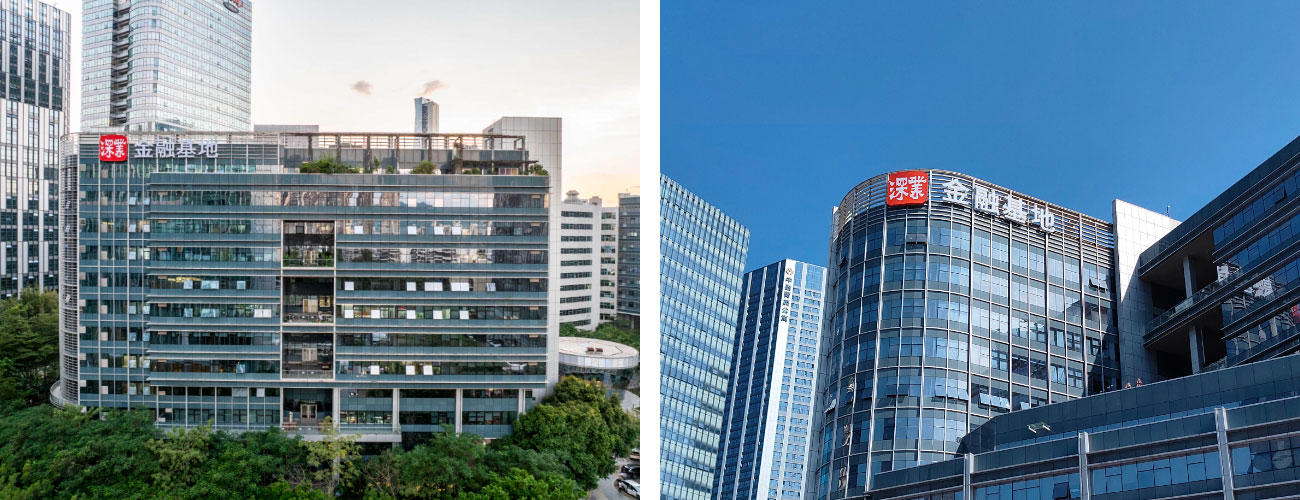

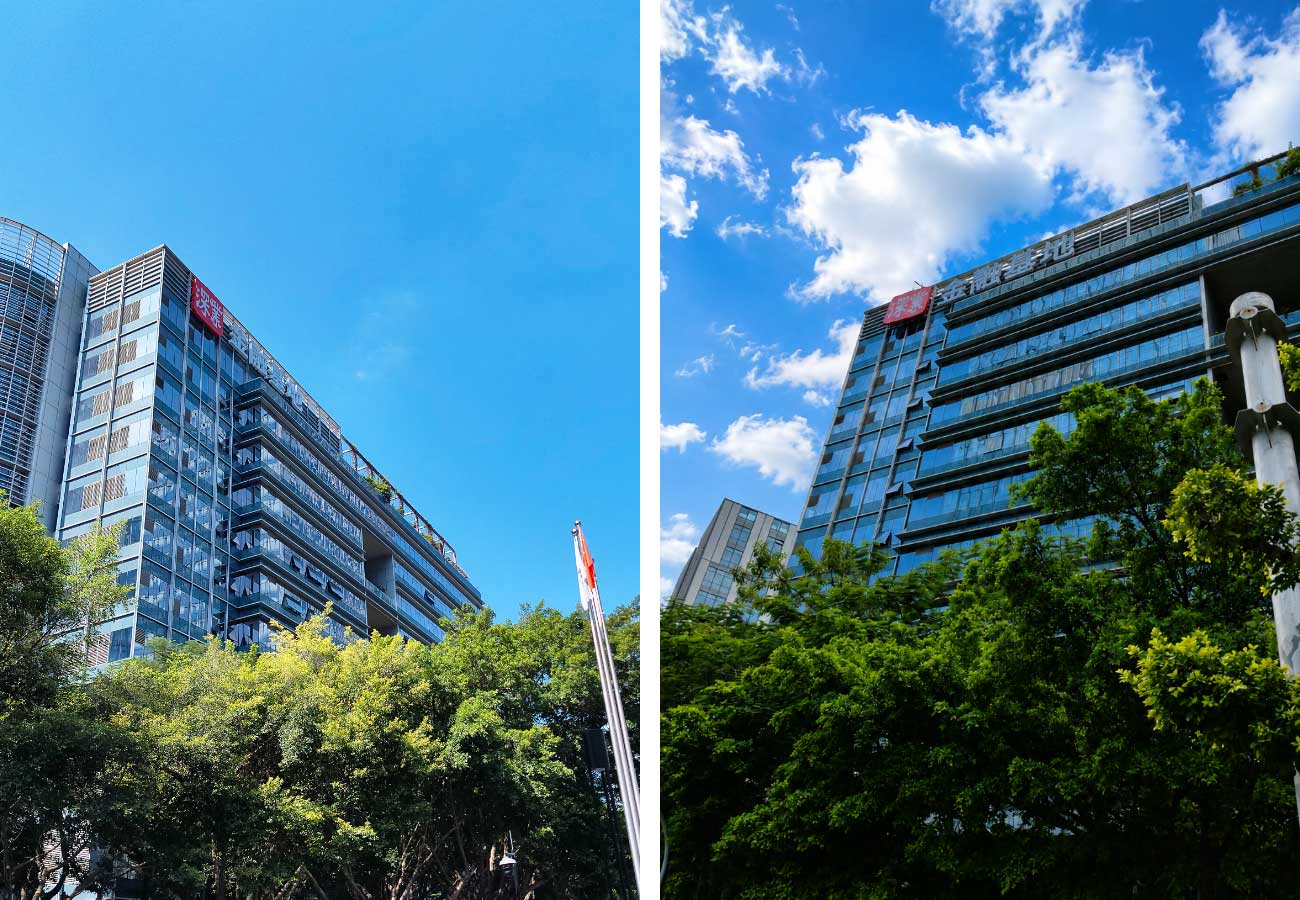

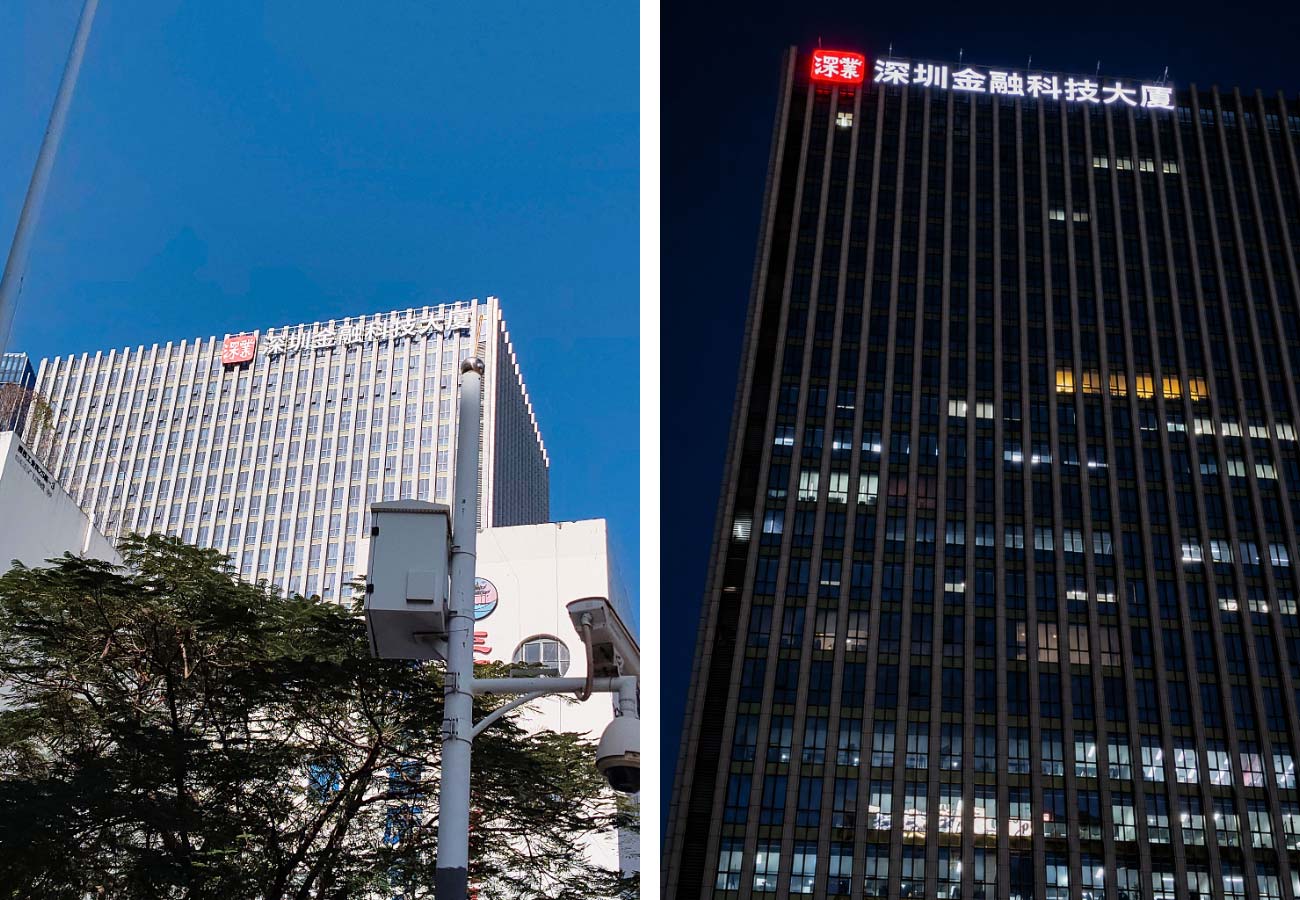

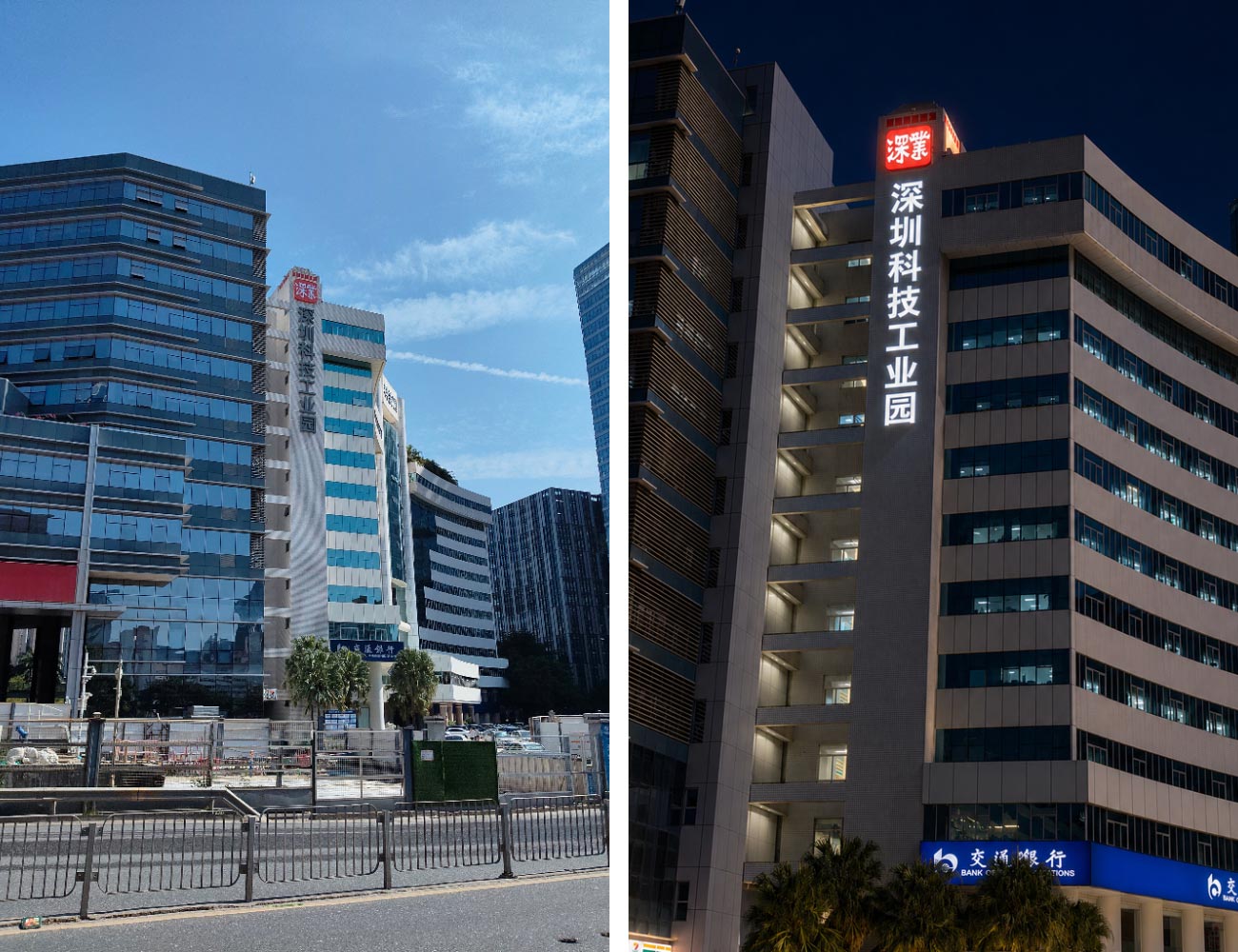

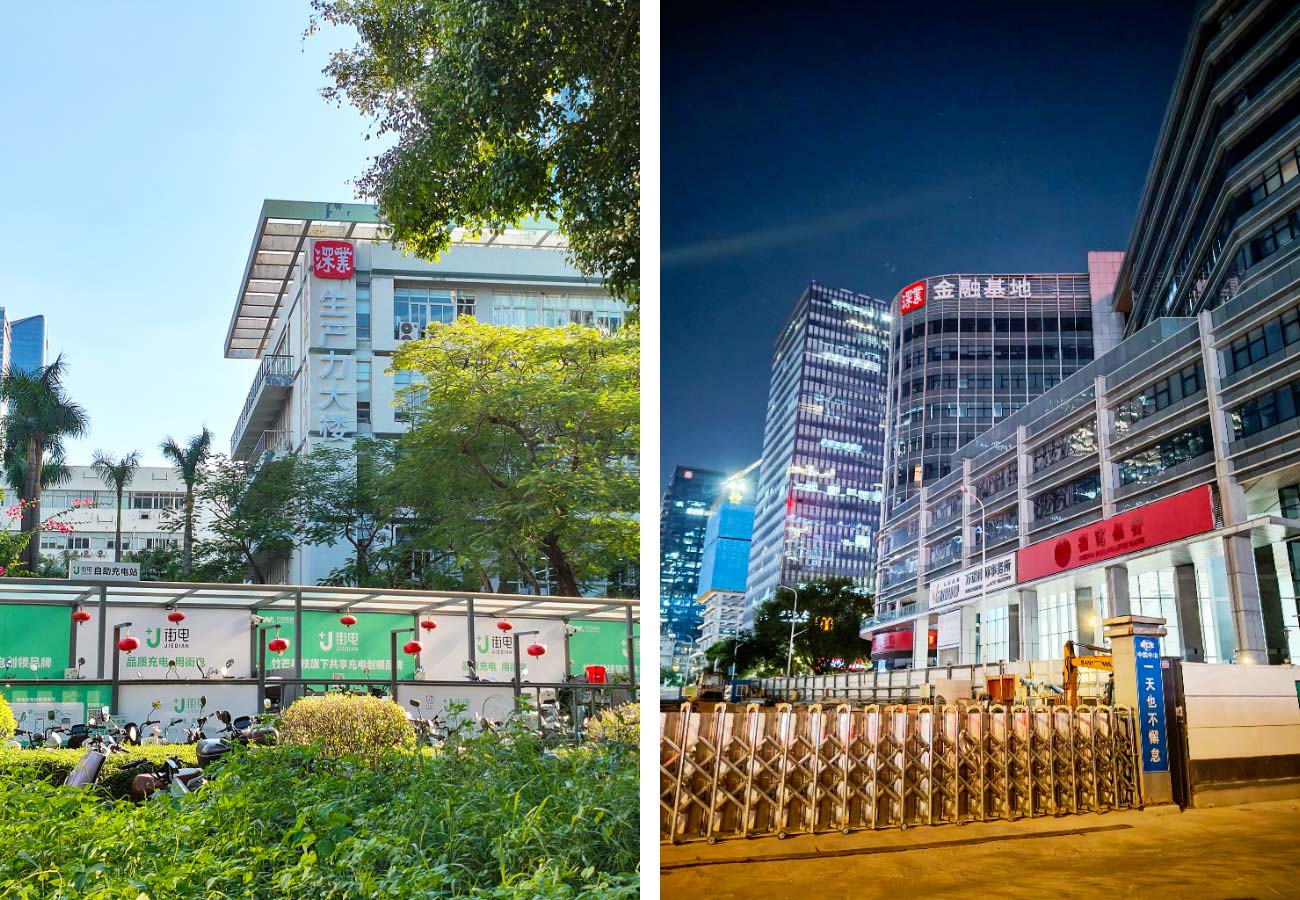

The completed rooftop signage provides consistent visibility from street level, neighboring buildings and aerial viewpoints.

The project demonstrates that the long-term performance of rooftop illuminated letters depends on the integration of multiple engineering factors rather than letter size alone, including:

• structural stability
• weather-resistant materials
• waterproof detailing
• lighting uniformity
• installation accuracy

The modular structure and integrated maintenance features are expected to reduce future servicing complexity while extending the operational life of the signage.

Technical Specifications

Frequently Asked Questions

Why is structural design important for rooftop illuminated letters?

Rooftop signage is exposed to continuous wind loads and weather conditions. Structural engineering helps ensure long-term safety and reduces maintenance requirements.

Why use aluminum channel letters?

Aluminum provides high dimensional accuracy while reducing structural weight, making it suitable for large rooftop installations.

Why use fluorocarbon coating?

Fluorocarbon finishes provide long-term resistance to ultraviolet radiation, moisture, pollution and color fading in outdoor environments.

Why use an astronomical timer?

The controller automatically adjusts daily switching schedules according to seasonal sunset changes, improving energy efficiency without manual adjustment.
