Engineering a Complete Shopping Mall Wayfinding Signage System for an Open-Air Coastal Retail Destination

Project Name: HAVEN SAMUI MALL

Time: 2024-2025

Quick Project Snapshot

Engineering Overview

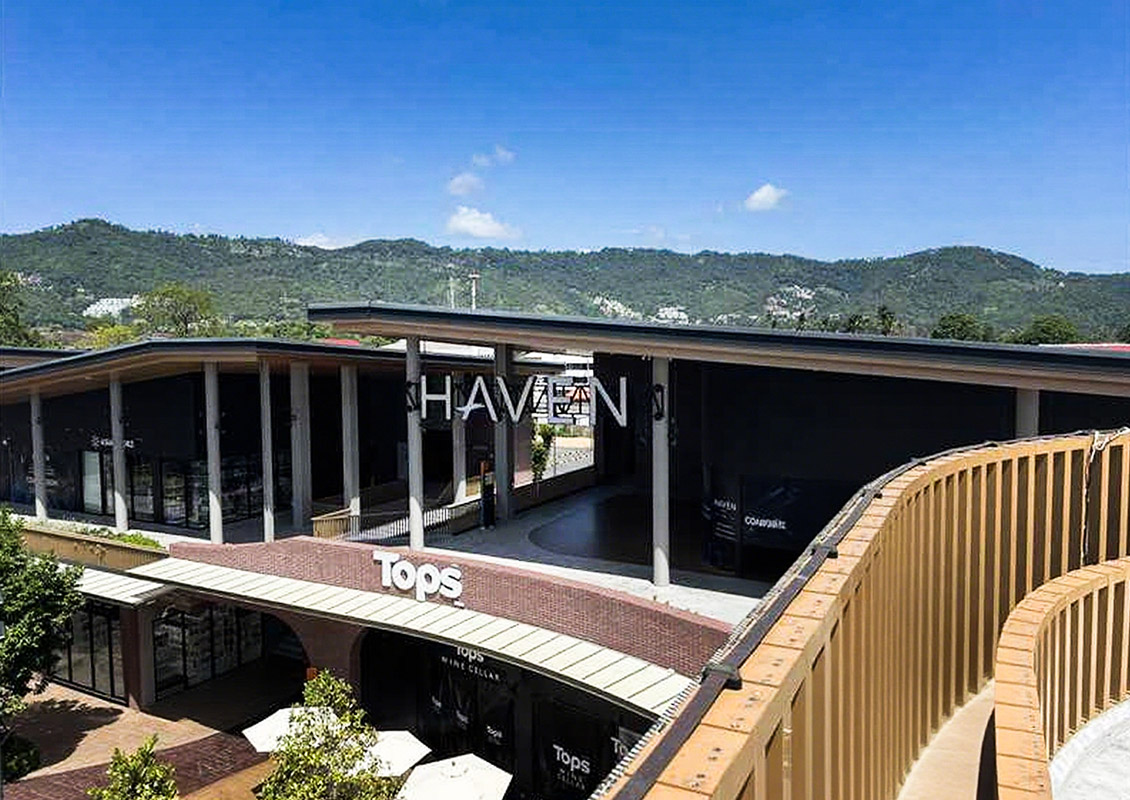

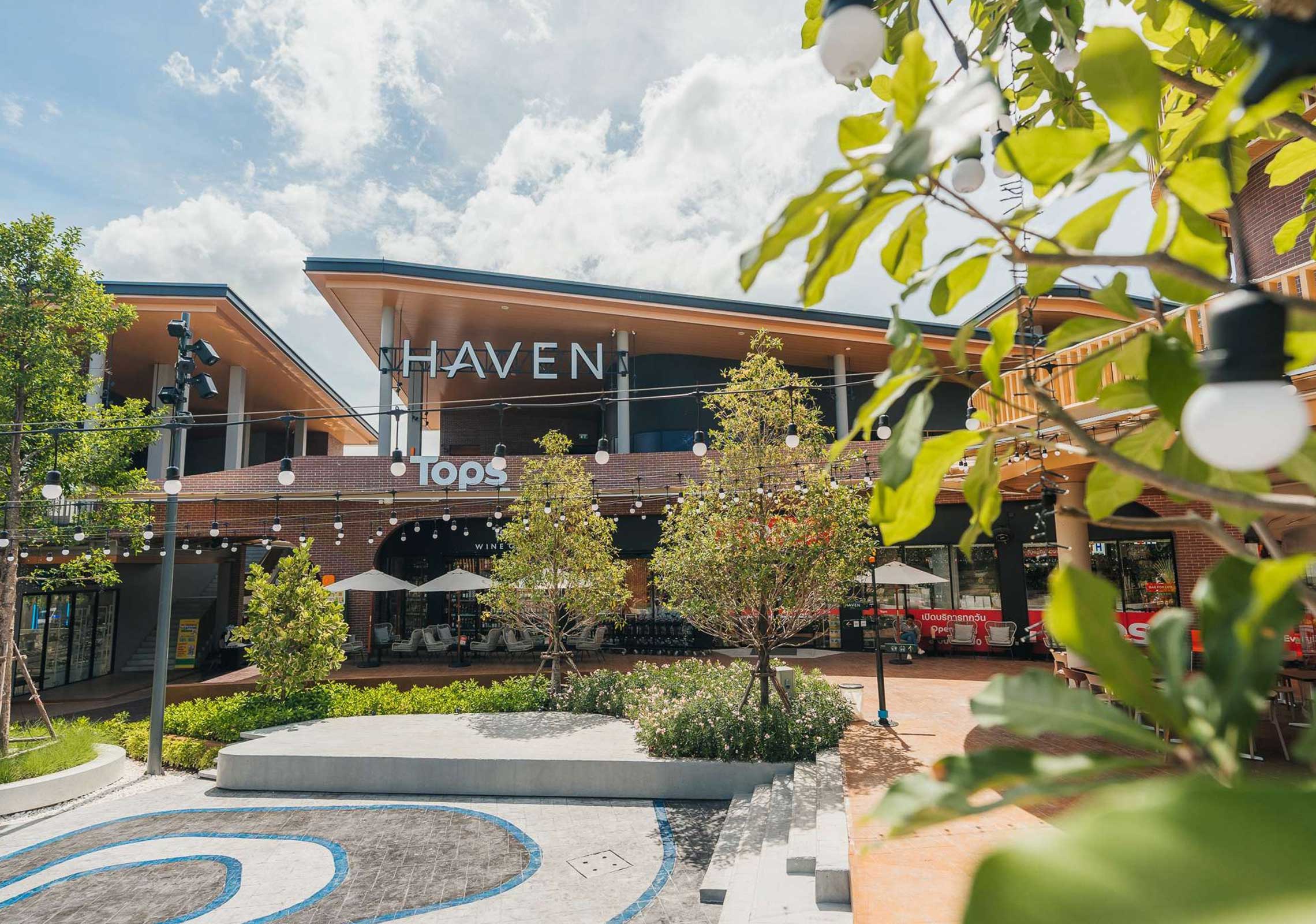

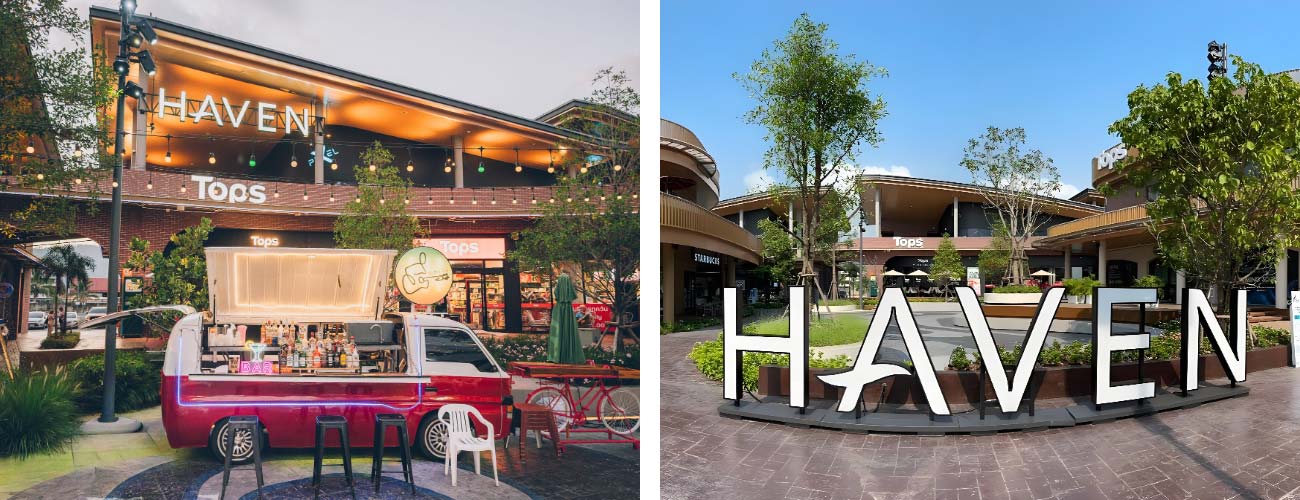

HAVEN SAMUI is located on Chaweng Beach Road in Koh Samui, where retail buildings are arranged as a collection of independent blocks instead of a conventional enclosed shopping mall. Visitors arrive from several entrances and move through landscaped courtyards, outdoor streets and open plazas before reaching individual stores.

This site layout creates a very different navigation pattern from that of an indoor retail centre. Without a central circulation space, visitors continually make decisions as they move between buildings. The role of wayfinding is therefore not to provide constant direction, but to present clear information at the moments when people naturally need it.

As the signage manufacturer, COSUN SIGN engineered and manufactured the complete wayfinding signage package, including pylon signs, directory signage, suspended directional signs and architectural identification signage. The engineering objective was to create a navigation system that performs reliably in a tropical coastal environment while integrating naturally with the surrounding architecture.

Engineering Challenge

A review of the site circulation showed that most visitors entered the development from parking areas or the beachfront rather than through a single primary entrance. Once inside the site, movement dispersed across several pedestrian routes before converging again at retail clusters.

Under these conditions, adding more directional signs would not necessarily improve navigation. Additional information can increase visual complexity and make orientation more difficult.

The engineering challenge was therefore to establish a navigation system that supports intuitive visitor movement without interrupting the architectural character of the development.

Effective wayfinding depends on presenting the right information at the right decision point, not on increasing the number of signs.

Engineering Response

The solution was developed around a three-level wayfinding hierarchy that follows how visitors naturally move through the site.

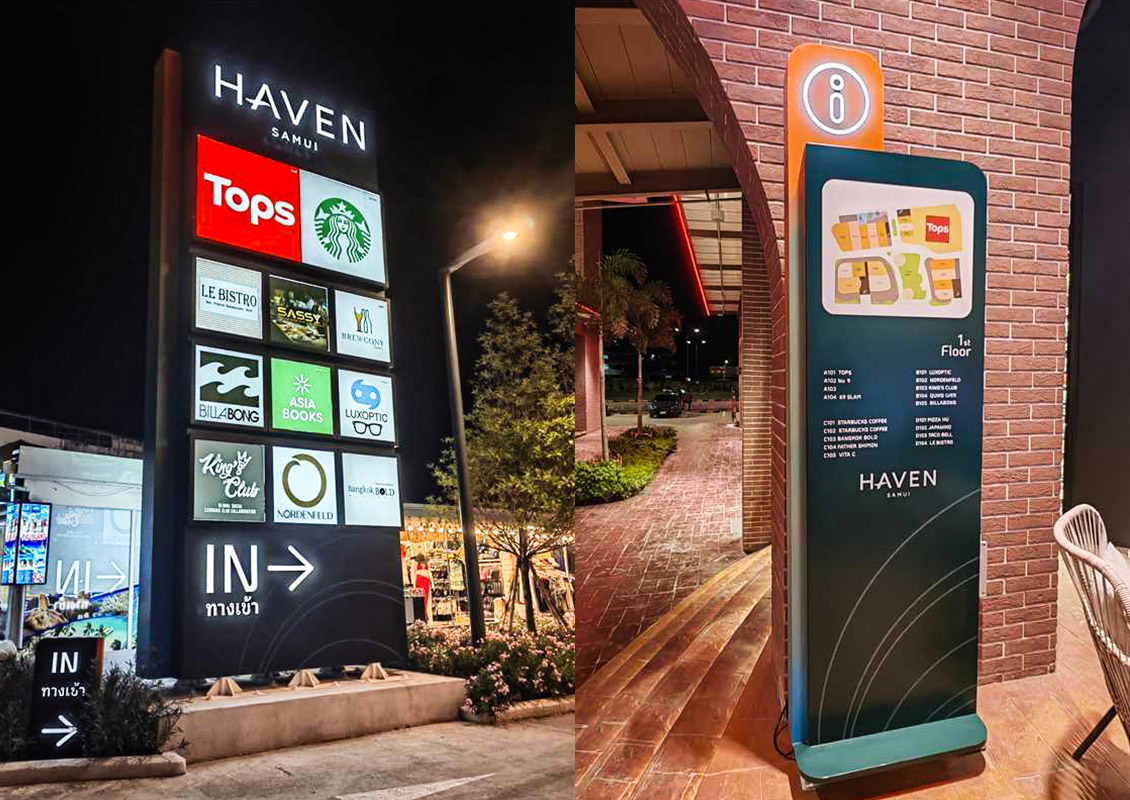

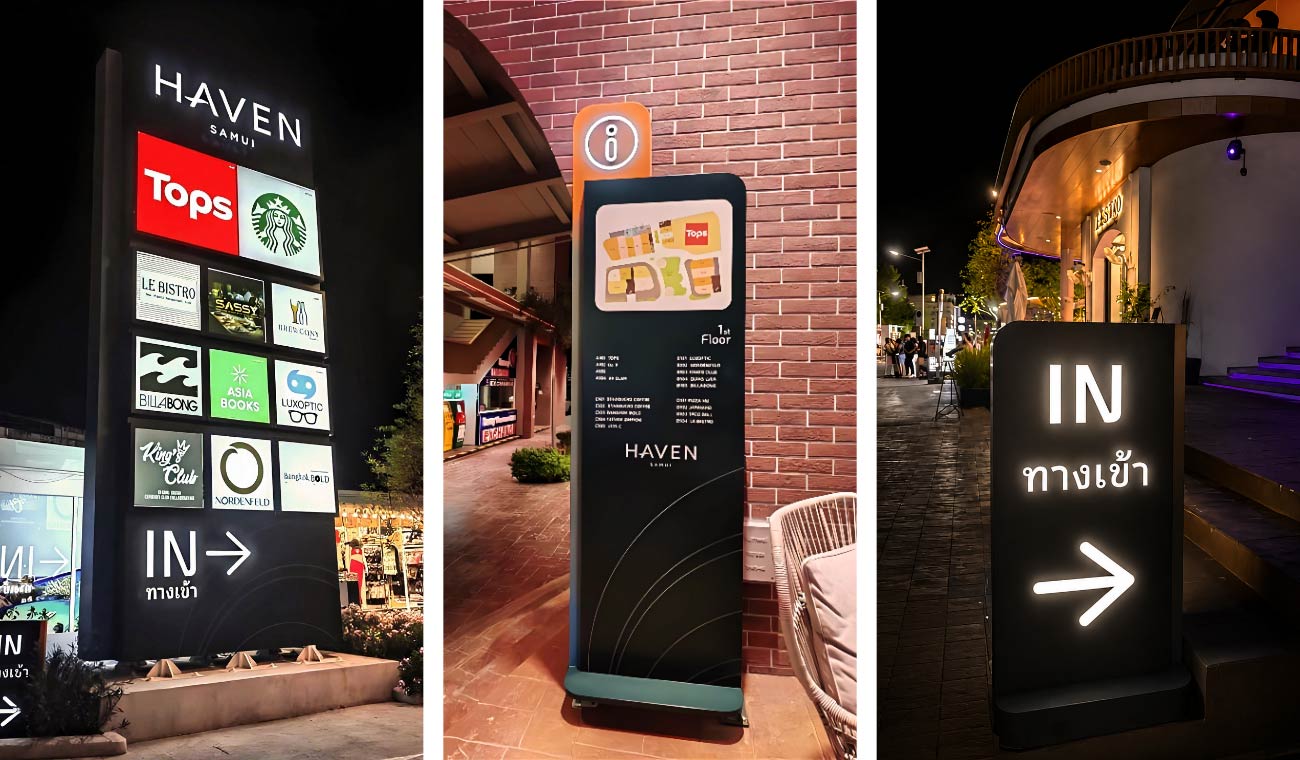

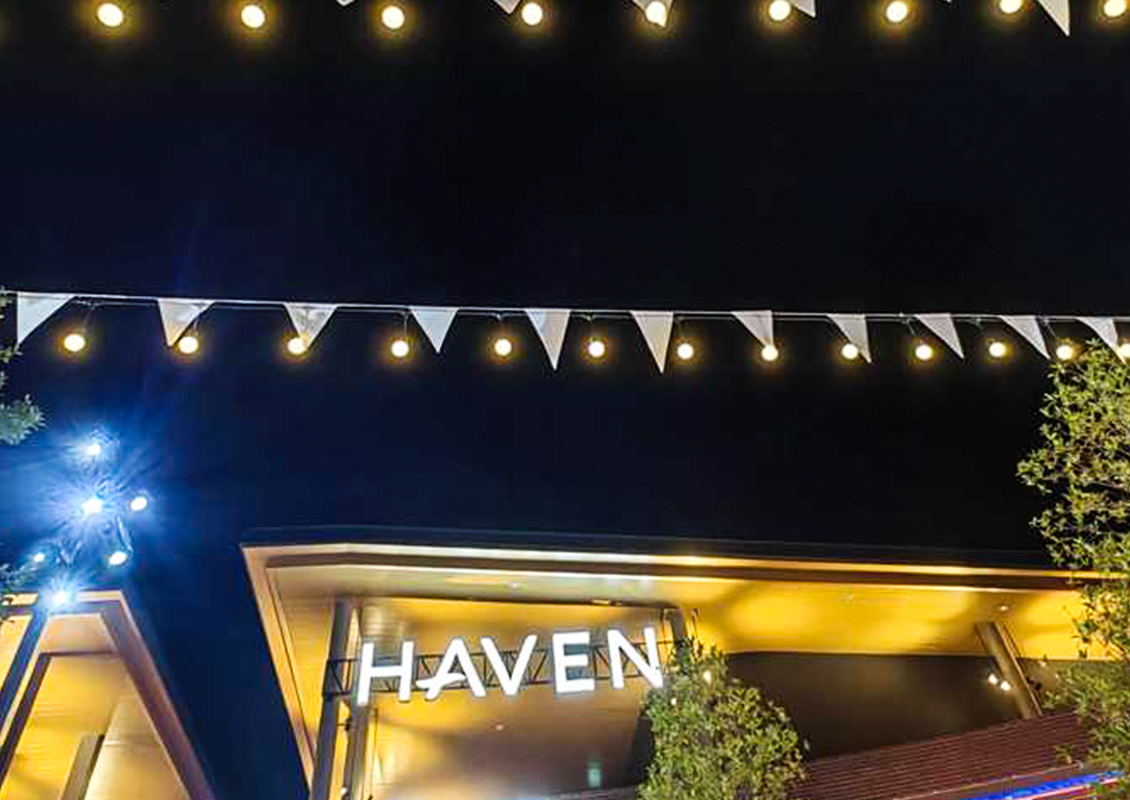

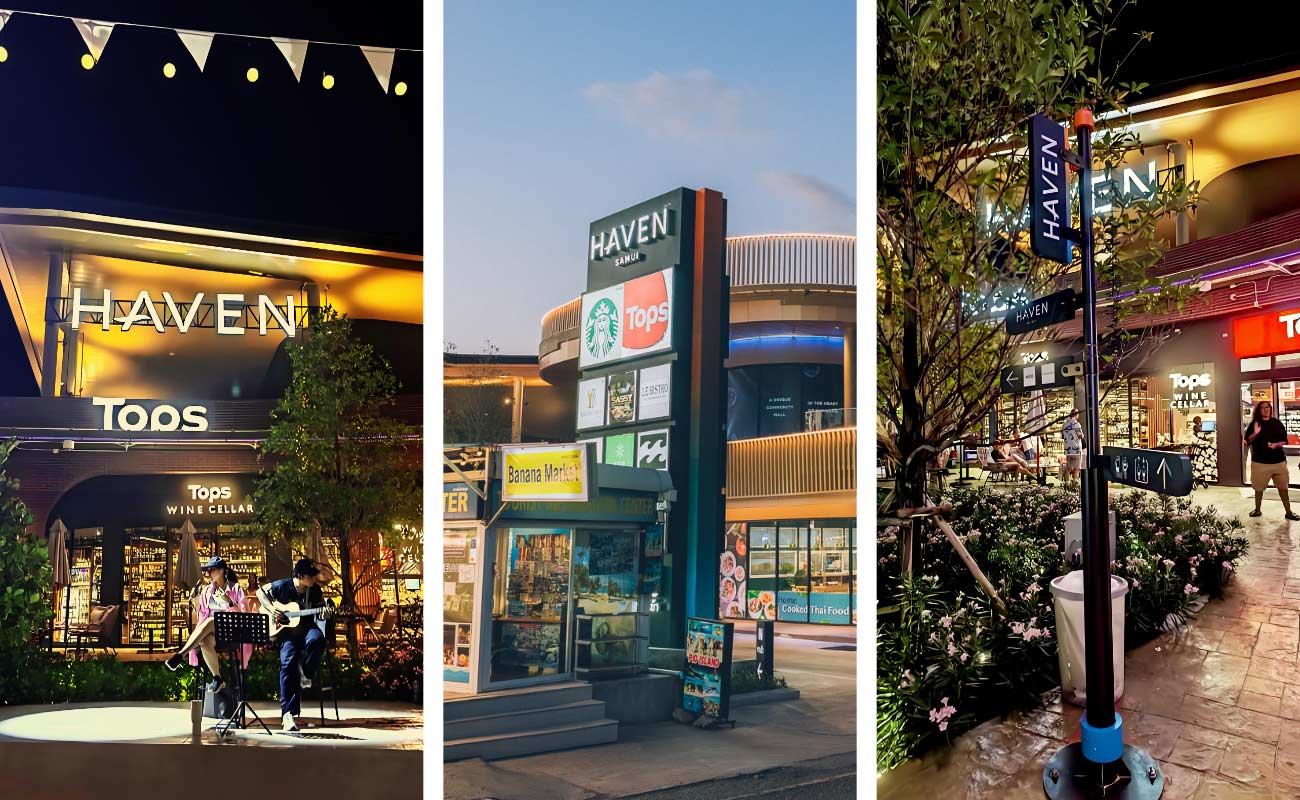

Site Recognition begins with pylon signs and rooftop identification, allowing visitors to recognise the destination before entering the development.

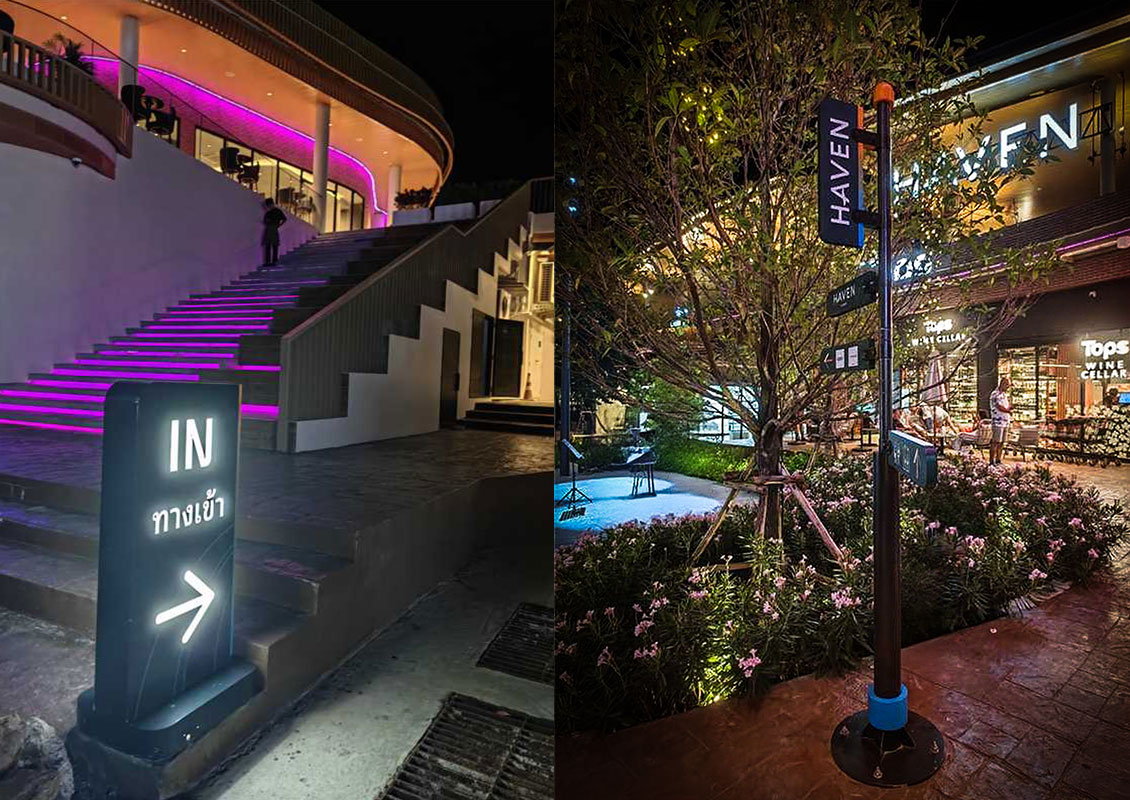

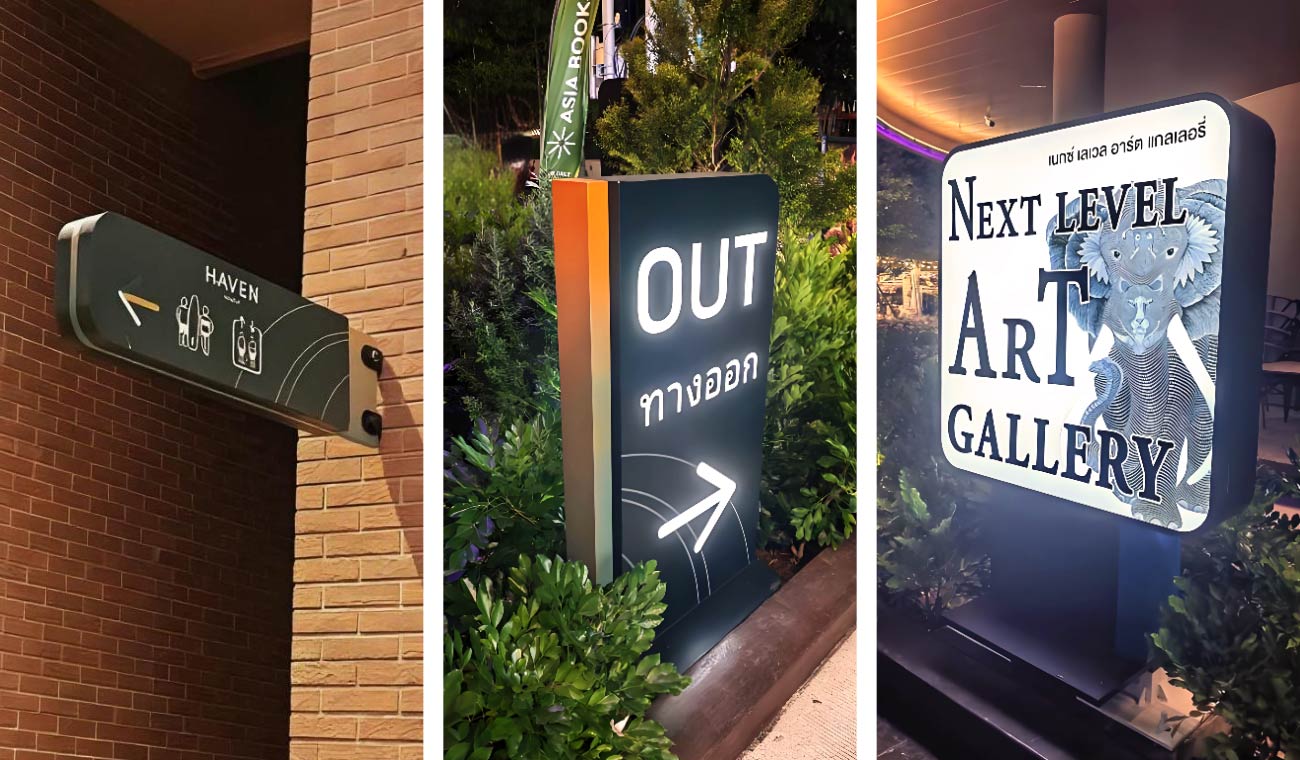

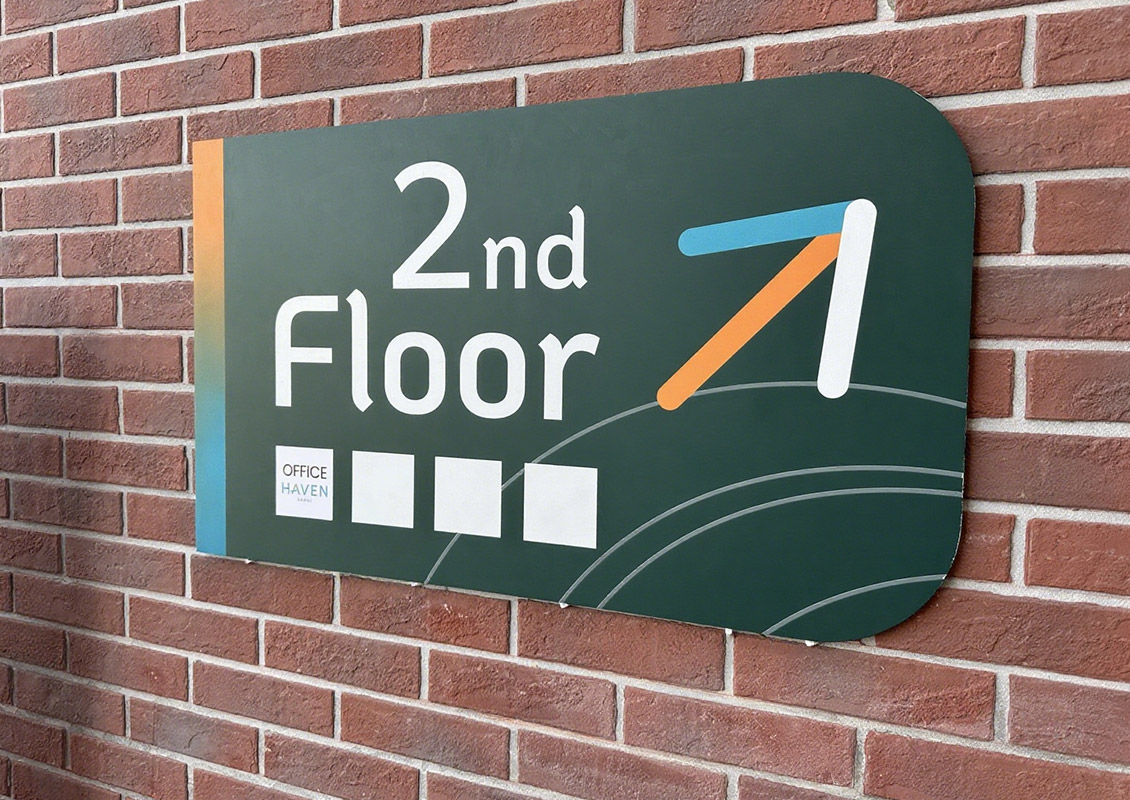

Area Orientation is provided through directory signs and suspended directional signage positioned at major circulation nodes, helping visitors understand the relationship between different retail zones.

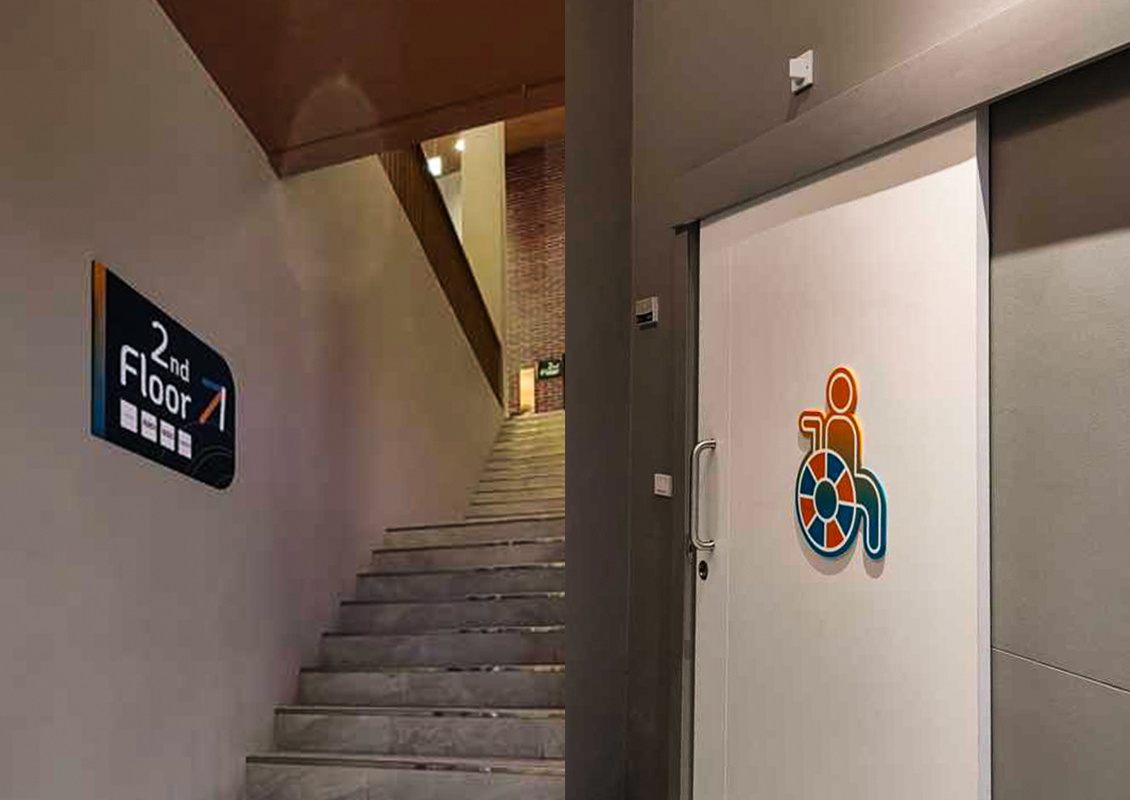

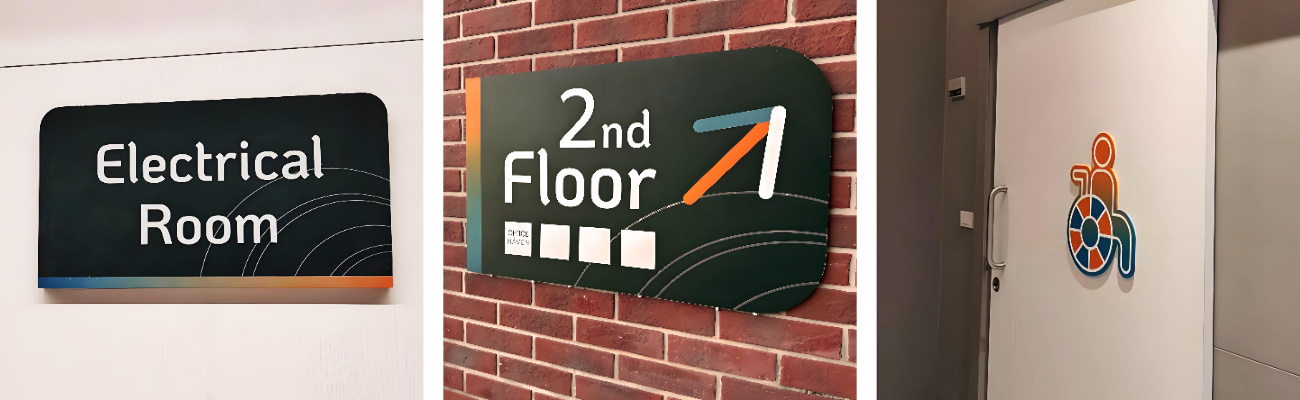

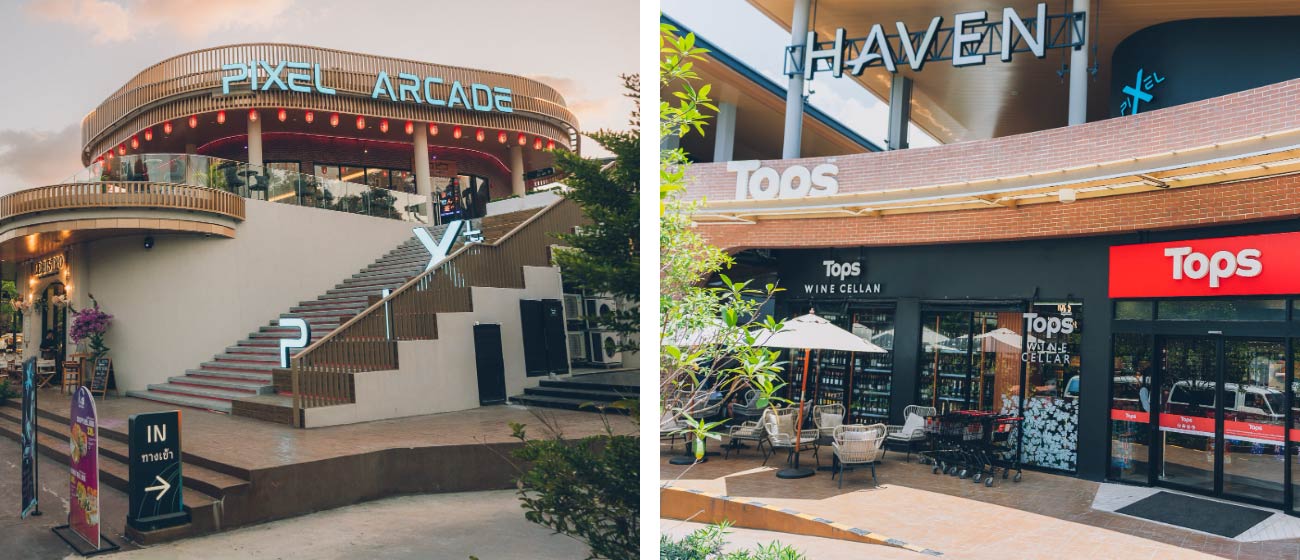

Destination Confirmation is achieved through tenant identification signs, room signs and ADA-compliant signage placed close to individual destinations.

This hierarchy allows navigation information to appear progressively throughout the visitor journey while preserving an open and uncluttered visual environment.

Engineering Decision Matrix

Material & Fabrication Engineering

Environmental exposure influenced almost every material decision.

Koh Samui’s coastal climate combines high humidity, airborne salt and strong ultraviolet radiation throughout the year. Under these conditions, surface finishes often deteriorate long before structural components reach the end of their service life.

Primary structures were fabricated from hot-dip galvanized steel to improve long-term corrosion resistance. Aluminium was selected for exterior sign cabinets because it offers good dimensional stability while reducing structural weight. A fluorocarbon coating improves colour retention and protects exposed surfaces from salt and ultraviolet degradation.

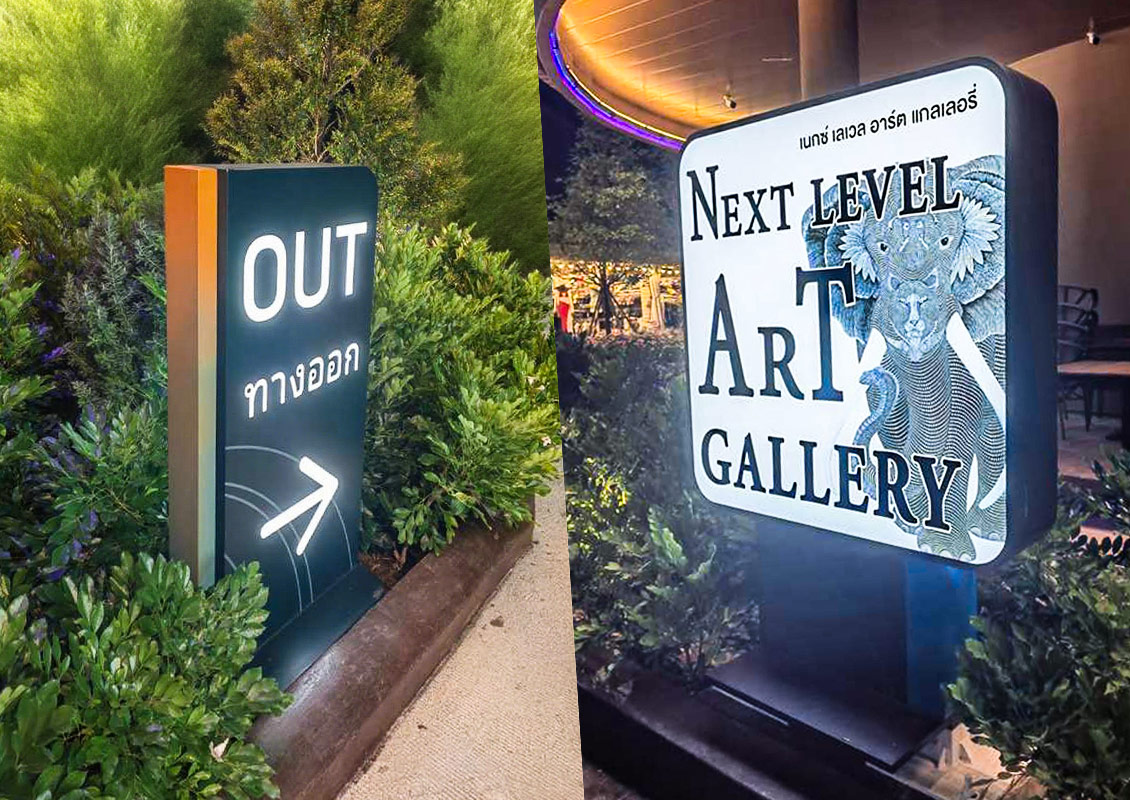

Illuminated signs use UV-resistant acrylic faces together with energy-efficient LED modules to provide consistent visibility during evening operation.

The directional signage system was designed as a modular assembly, allowing individual information panels to be replaced without dismantling the supporting structure. This simplifies future tenant updates and reduces long-term maintenance costs.

In coastal environments, lifecycle performance is often a more valuable design criterion than initial fabrication cost.

Installation Engineering

Factory prefabrication reduced the amount of on-site welding and helped preserve factory-applied protective finishes.

Large pylon signs were installed on reinforced concrete foundations designed for local wind conditions. Suspended signs incorporate anti-sway reinforcement to improve stability in exposed outdoor spaces, while wall-mounted identification signs use concealed fixing systems that minimise disturbance to finished architectural surfaces.

Modular mounting assemblies also simplify future maintenance as retail tenants change over time.

Engineering Outcomes

The completed wayfinding system establishes a continuous sequence of information from vehicle arrival to individual retail destinations.

Visitors receive navigation guidance where decisions naturally occur rather than along every pedestrian route. This creates a clearer visitor experience while maintaining the clean architectural appearance of the development.

Corrosion-resistant materials, factory-controlled fabrication and modular construction also contribute to lower maintenance requirements and more efficient long-term operation.

Engineering Insight

Open-air retail developments should not be approached as outdoor versions of enclosed shopping malls. The two environments generate different circulation patterns, and those differences should determine how navigation information is organised.

Projects such as HAVEN SAMUI demonstrate that effective wayfinding depends more on understanding visitor behaviour than increasing the quantity of directional signage. Information presented at key decision points generally performs better than continuous directional messaging distributed throughout a site.

Material selection should also be evaluated over the full operational lifecycle. In tropical coastal environments, aluminium construction combined with fluorocarbon coating typically offers better resistance to corrosion, ultraviolet exposure and routine maintenance than many decorative finishes.

Digital technologies—including interactive directories, smart digital signage and wayfinding kiosks—can enhance visitor experience. Their value, however, depends on a well-planned physical navigation system that provides a clear spatial framework for the entire development.
